Electric Shower Trolley Built Around Nursing Home Bathing Workflows

In a nursing home or long-term care facility, assisted bathing is not an occasional procedure. Residents with limited mobility may require scheduled hygiene care every week, and the same equipment may be used repeatedly for different residents. This places different demands on a bathing trolley than equipment intended only for occasional patient use.

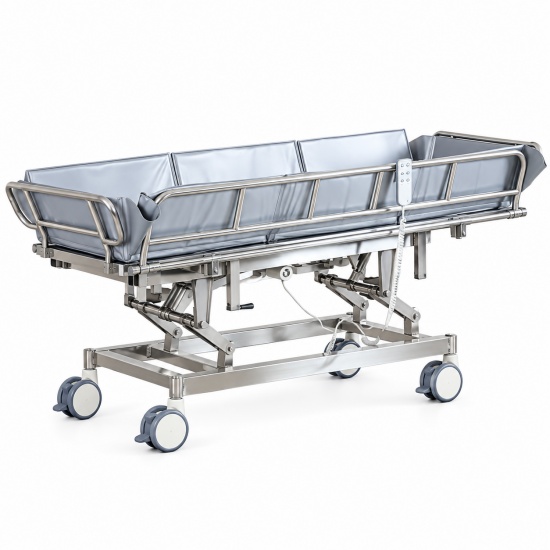

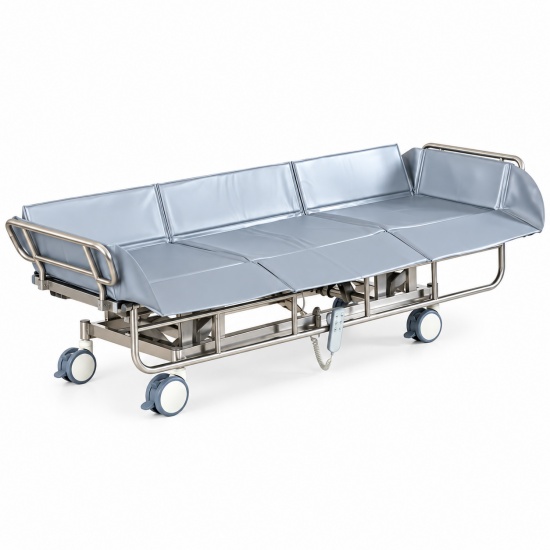

This electric nursing home shower trolley is designed as a dedicated platform for assisted bathing and personal hygiene care. It combines electric height adjustment, powered tilting, extended folding side rails, a waterproof padded bathing surface and a stainless steel supporting structure in one mobile unit.

For care facilities managing multiple dependent residents, the trolley provides a practical way to combine resident support, caregiver access, wet-area durability and repeated daily operation.

Designed for Residents Who Require Extensive Bathing Assistance

Full-Length Support Instead of Seated Bathing

Not every nursing home resident can safely use a conventional shower chair. Residents with significant mobility limitations may be unable to stand during transfer, maintain a stable seated position or cooperate fully with conventional bathing procedures.

The trolley provides an internal patient support area of approximately 1950 × 630 mm, allowing residents to remain supported in a horizontal position while caregivers perform washing and other personal hygiene procedures.

Suitable for High-Dependency Care

The horizontal bathing arrangement can be particularly useful when caring for residents who require substantial physical assistance throughout the hygiene process. Instead of repeatedly adapting conventional bathroom equipment, caregivers have a purpose-built platform around which the procedure can be organized.

Electric Adjustment Supports Repeated Care Procedures

430–660 mm Electric Height Adjustment

The bathing platform can be electrically adjusted through a height range of approximately 430–660 mm, excluding the side rails. Caregivers can therefore change the working level according to the resident and the stage of the bathing procedure.

This flexibility becomes particularly valuable in institutional care, where different residents may have different transfer and care requirements and the same equipment needs to accommodate repeated procedures.

Adapt the Trolley to the Care Task

Bathing, skin care, drying and dressing do not always require the same working position. Powered height adjustment allows caregivers to reposition the platform instead of completing the entire procedure around one fixed working height.

Independent Powered Tilting

The trolley also incorporates a powered tilting function controlled by a separate electric actuator. Two electric actuators are used in total, with one responsible for overall lifting and the other for tilting.

This provides additional positioning flexibility during assisted bathing without requiring repeated manual adjustment of the support platform.

Stainless Steel Construction for High-Frequency Wet-Area Use

30 × 60 × 1.1 mm Stainless Steel Main Frame

In a nursing home, bathing equipment may be exposed to water and cleaning procedures repeatedly over a long service period. Structural materials therefore need to be considered as part of the purchasing decision rather than treated as a cosmetic specification.

The trolley uses a main frame manufactured from 30 × 60 × 1.1 mm stainless steel rectangular tubing. The welded structure provides a robust foundation for the electric adjustment system while making the equipment suitable for wet-care environments.

25 × 38 mm Stainless Steel Connecting Components

The moving platform incorporates 25 × 38 mm stainless steel connecting components. These reinforced structural sections support the articulated mechanism during powered adjustment and repeated institutional operation.

Double-V Support Structure for Better Load Distribution

The moving mechanism uses a reinforced double-V supporting arrangement. The design distributes mechanical loads through the platform structure rather than concentrating force at a single point.

For long-term care facilities, this type of structural detail is important because equipment may undergo repeated lifting and positioning cycles over an extended service period.

Waterproof Removable Surface Supports Multi-Resident Use

Dedicated Wet-Care Patient Surface

The bathing area is manufactured from a high-toughness waterproof material with high-density EVA padding inside. The waterproof outer layer is intended for direct exposure to water, while the internal padding provides a softer contact surface for residents during bathing.

Removable for Routine Cleaning and Disinfection

When one piece of bathing equipment is used for different residents, cleaning between uses becomes an important part of the facility's workflow. The bathing surface can be removed for cleaning and disinfection, allowing the patient-contact component to be handled separately during routine hygiene procedures.

This makes the trolley better suited to institutional care environments where equipment turnover and cleaning need to be considered together.

Extended Folding Rails Balance Protection and Caregiver Access

Protective Stainless Steel Rails on Both Sides

Extended stainless steel folding side rails are fitted along both sides of the patient platform. When raised and locked, they provide lateral protection for residents who may be unable to maintain a stable body position independently.

The rail structure is designed to withstand vertical pulling or pushing loads of up to 100 kg, providing a robust protective system for repeated professional use.

180° Rotation Creates a More Open Care Area

During resident transfer, washing or other procedures, caregivers may require closer lateral access. The side rails can be lowered and then rotated through up to 180 degrees, reducing obstruction around the patient platform.

After the procedure has been completed, the rails can be returned to their raised and locked position for continued protection.

Mobile Design Fits Institutional Bathing Routines

Four 5-Inch Quiet Swivel Casters

The trolley is equipped with four 5-inch swivel casters to support movement within nursing homes and long-term care facilities. Wear-resistant wheel surfaces and self-lubricating bearings support smooth and relatively quiet movement during routine operation.

The mobile design allows the equipment to be repositioned according to the facility's care layout rather than requiring all procedures to take place around permanently installed bathing equipment.

Individual Brakes on Each Caster

Each caster is equipped with an independent brake. After the trolley reaches the required position, caregivers can secure the casters individually before beginning the bathing or hygiene procedure.

This model uses individual caster brakes rather than a central locking system.

240 kg Capacity for Broader Resident Care Requirements

The trolley has a rated load capacity of 240 kg. For nursing home procurement, this specification is particularly relevant when a facility serves residents with different body sizes and levels of physical dependency.

The load capacity works together with the stainless steel main frame, reinforced connecting components and double-V supporting structure to create a platform intended for professional assisted-care applications.

What Matters When Choosing a Shower Trolley for a Nursing Home?

Consider Frequency of Use, Not Just Purchase Price

A shower trolley purchased for institutional care may be used repeatedly over many years. For this reason, buyers should evaluate how the structure, adjustment system, patient surface and moving components fit the facility's actual bathing routine rather than comparing products only by initial price.

Can It Adapt to Different Residents?

Electric height adjustment and powered tilting allow the same trolley to be repositioned according to different care requirements, while the 240 kg load capacity supports a broad range of institutional applications.

Can Caregivers Reach the Resident Easily?

The folding and rotating rail design allows the side of the trolley to be opened when direct access is required, while the rails can be returned to a protective position afterwards.

Is It Designed for Repeated Wet-Area Operation?

The stainless steel frame, waterproof patient surface and removable bathing component address the repeated water exposure and cleaning requirements associated with institutional bathing.

A Practical Workflow for Multi-Resident Assisted Bathing

For long-term care facilities, the value of professional bathing equipment comes from how its features work together throughout the complete care process.

The trolley can be adjusted to an appropriate working height, the side rails can be opened when closer access is required, the resident remains supported on a waterproof padded surface, and the equipment can be cleaned after the procedure in preparation for subsequent use.

This integrated approach makes the product more than a mobile shower stretcher. It becomes part of the facility's routine hygiene-care workflow.

Key Technical Specifications

Product Type: Electric Nursing Home Shower Trolley / Electric Bathing Trolley.

Overall Dimensions: 2150 × 870 × 680–900 mm, including side rails.

Internal Dimensions: 1950 × 630 × 430–660 mm, excluding side rails.

Electric Height Range: 430–660 mm, excluding side rails.

Powered Functions: Electric overall lifting and electric tilting.

Motor Configuration: Two electric actuators independently controlling lifting and tilting.

Main Frame: 30 × 60 × 1.1 mm stainless steel rectangular tubing.

Connecting Components: 25 × 38 mm stainless steel structure.

Support Design: Reinforced double-V load-distribution structure.

Bathing Surface: High-toughness waterproof material with high-density EVA padding.

Cleaning: Removable bathing surface for cleaning and disinfection.

Side Rails: Extended folding stainless steel rails with locking mechanisms.

Side Rail Rotation: Up to 180° after lowering.

Side Rail Load Resistance: Up to 100 kg vertical pulling or pushing load.

Casters: Four 5-inch quiet swivel casters.

Brake System: Individual caster brakes.

Rated Load Capacity: 240 kg.

For Nursing Home Projects, Distributors and Long-Term Care Procurement

This electric shower trolley is suitable for nursing homes, long-term care facilities, assisted living institutions, rehabilitation centers and other professional care environments where residents require substantial assistance with bathing and personal hygiene.

For facility operators, the combination of electric adjustment, stainless steel construction, removable waterproof patient support and folding side protection provides a practical solution for repeated institutional bathing routines.

For medical equipment distributors and project buyers, the product can also complement nursing beds and other long-term care equipment as part of a more complete institutional care solution.

Explore additional products in our Nursing Home Accessories range, or contact us for technical specifications, available configurations, OEM requirements and bulk-order quotations.
