Patients recovering from orthopedic injuries often require more than a standard nursing bed. They may need specific lower-limb positioning, stable traction support and flexible adjustment options throughout different stages of recovery.
This manual orthopedic care bed combines a stainless steel traction frame with independently adjustable left and right leg sections, allowing caregivers to provide more personalized positioning for orthopedic rehabilitation, fracture recovery and long-term patient care.
Designed for hospitals, rehabilitation centers, nursing facilities and specialized care environments, this model provides a practical combination of orthopedic functionality and reliable manual operation.
The lower mattress section is divided into two independent leg platforms. Each side can be adjusted separately, allowing caregivers to position the left and right legs according to different patient conditions.
This design is especially useful when one lower limb requires different support or elevation compared with the opposite side during orthopedic recovery.
Two separate crank mechanisms control the left and right leg sections. Each leg platform can be adjusted up to approximately 40°, providing greater flexibility than conventional manual beds with a synchronized leg section.
During rehabilitation, patient positioning requirements may change over time. Independent leg adjustment allows caregivers to modify the lower-limb position without changing the entire bed configuration.

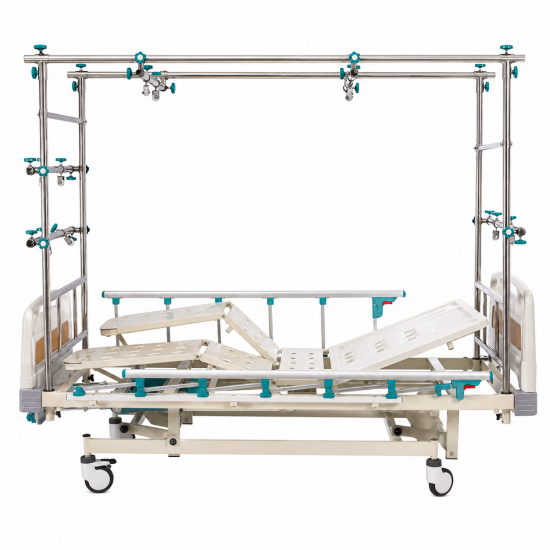

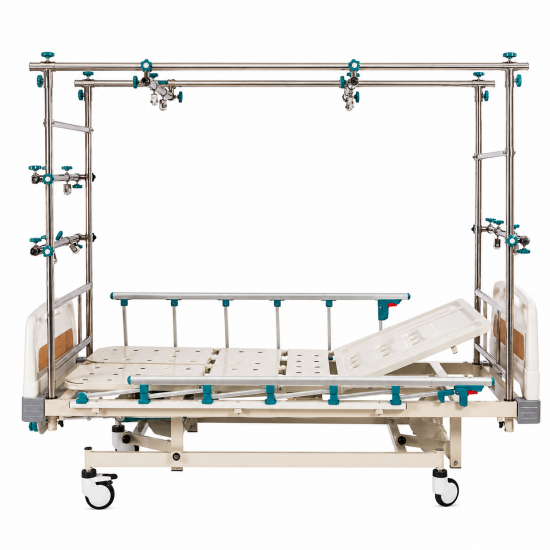

The bed is equipped with a complete stainless steel traction frame surrounding the mattress platform. The four-post structure provides a stable foundation for compatible orthopedic traction accessories.
The traction system uses stainless steel materials to provide corrosion resistance, structural stability and easy maintenance in professional healthcare environments.
Adjustable mounting points along the traction frame allow compatible traction components to be positioned according to different orthopedic care requirements.
This flexibility makes the bed suitable for facilities that require adaptable orthopedic support rather than a standard patient bed configuration.
The backrest can be manually adjusted from a flat position to approximately 70°. This allows patients to move into more comfortable positions for eating, communication, reading and daily activities.
The mattress platform height can be adjusted between approximately 530 mm and 730 mm. The adjustable height range helps caregivers select a more suitable working position during routine nursing procedures.
The bed uses manual crank mechanisms for adjustment. This simple mechanical design reduces dependence on electrical infrastructure and provides a practical solution for facilities that prioritize reliability and easy maintenance.
For rehabilitation facilities, patients may require repeated changes in positioning during recovery. The independent leg sections and adjustable backrest provide additional flexibility during different rehabilitation stages.
Nursing homes and elderly care institutions may care for residents with long recovery periods or mobility limitations. This orthopedic care bed provides specialized positioning capability while maintaining a practical manual structure.
After orthopedic procedures, patients may require controlled positioning of the back and lower limbs. The independent leg adjustment system provides caregivers with additional options for supporting individual patient needs.
The main structure uses an epoxy-coated steel frame designed for durability during repeated daily operation. The robust construction supports long-term use in healthcare environments.
Aluminum alloy side rails provide bedside protection while allowing caregivers convenient access when lowered.
The head and foot boards use practical PP materials suitable for healthcare environments where routine cleaning and maintenance are required.
The bed is equipped with medical casters and a central braking system. Caregivers can move the bed when required and secure it efficiently after positioning.
A conventional hospital bed may provide basic backrest and leg adjustment, but orthopedic patients often require more targeted positioning solutions.
This model provides several specialized features:
The left and right leg sections can be controlled separately, allowing more precise lower-limb positioning.
The stainless steel traction frame provides a dedicated structure for orthopedic traction configurations.
The mechanical adjustment system provides straightforward operation without depending on electric motors or control systems.
The combination of orthopedic functions and durable construction makes the bed suitable for specialized departments and long-term care projects.
2235 × 960 mm.
1910 × 830 mm.
530–730 mm.
0–70°.
0–40° independent manual adjustment.
0–40° independent manual adjustment.
Full stainless steel orthopedic traction structure.
Epoxy-coated steel construction.
Foldable aluminum alloy side rails.
PP material construction.
Four medical casters with central braking system.
Up to 250 kg.
Approximately 152 kg.
This manual orthopedic care bed is designed for healthcare providers who require more than a standard patient bed. Independent left and right leg adjustment, a stainless steel traction frame and adjustable positioning functions provide a specialized solution for orthopedic recovery and rehabilitation care.
For nursing facilities, rehabilitation centers, hospitals and medical equipment distributors, this model offers a practical balance between orthopedic functionality, durability and long-term operational reliability.
For project purchasing, OEM requirements or bulk orders, please contact us for detailed specifications and quotation support.
