Electric Nursing Home Bed Designed for Long-Term Resident Care

A nursing home bed is used differently from a bed intended only for short-term recovery. Residents may rely on the same equipment every day for sleeping, meals, personal care and assisted positioning, while nursing staff may operate the bed repeatedly throughout each shift. This three-function electric nursing home bed is designed around those long-term care requirements.

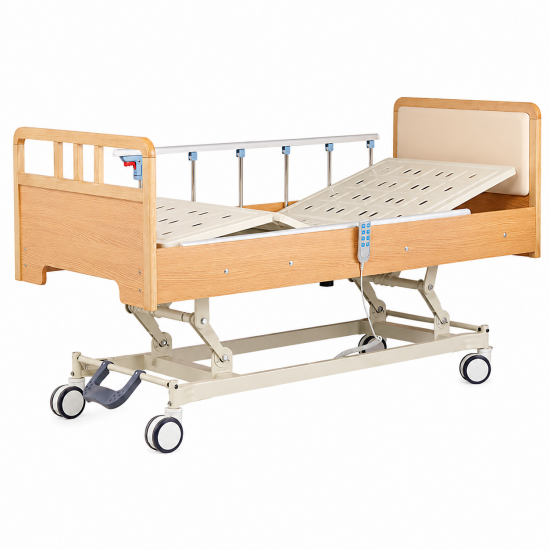

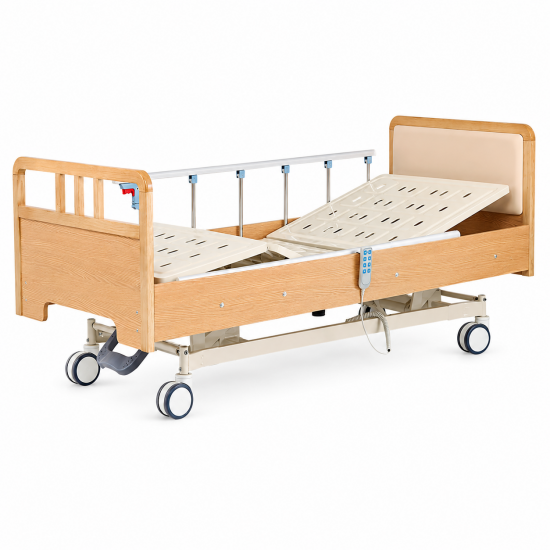

The bed combines electric backrest, leg and whole-bed height adjustment with 148 cm six-position aluminum side rails, a one-piece stamped steel sleeping platform and a central locking caster system. Wooden head and foot panels provide a warmer appearance for resident rooms without sacrificing the practical functions required by caregivers.

Three Electric Functions for Daily Resident Positioning

0–75° Backrest Adjustment

The backrest can be electrically adjusted from approximately 0° to 75°, allowing residents to move from a flat lying position toward a supported sitting posture.

This adjustment is useful throughout the day for meals, reading, conversation and other activities performed from the bed. For residents with limited upper-body mobility, electric operation also reduces dependence on repeated manual lifting by nursing staff.

0–35° Electric Leg Adjustment

The leg section provides an adjustment range of approximately 0–35°. It can be operated according to individual positioning requirements and combined with backrest movement to provide different resting postures.

For long-term residents, having several available positions can make the bed more adaptable to changing routines throughout the day.

450–720 mm Whole-Bed Height Adjustment

The complete sleeping platform can be electrically raised or lowered between approximately 450 and 720 mm. This is an important distinction from basic two-function care beds because the adjustment changes not only the resident's posture but also the working height of the entire mattress platform.

Nursing staff can raise the bed when performing personal care, changing bedding or carrying out other bedside tasks, then return it to a lower position according to the resident's daily requirements.

148 cm Extra-Long Side Rails for Broader Protection

Six-Position Aluminum Alloy Rail Structure

This model is equipped with approximately 148 cm long aluminum alloy folding side rails on both sides. Each rail uses a six-position structure, providing longer bedside coverage than shorter conventional folding rail designs.

For elderly residents with reduced mobility, the extended rail length provides broader support along the sleeping area. The aluminum construction also provides a practical balance between structural strength, corrosion resistance and ease of operation.

Folding Design for Caregiver Access

Extended side protection should not restrict routine nursing work. When staff need direct bedside access, the folding rail system can be lowered to create additional working space for resident transfers, clothing changes, bedding replacement and other hands-on care procedures.

Once bedside care has been completed, the rails can be returned to their protective position as required.

One-Piece Stamped Steel Bed Platform

Integrated Construction Instead of Welded Wire Mesh

The mattress platform is manufactured from one-piece stamped steel sections rather than a conventional welded wire-mesh structure. This creates an integrated and stable supporting surface beneath the mattress while providing the durability required for repeated electric adjustment.

Ventilation openings are formed directly into the steel platform, allowing airflow beneath the mattress without relying on an open wire-mesh deck.

Practical for Institutional Cleaning and Maintenance

For nursing homes purchasing beds for long-term operation, the construction of the sleeping platform deserves attention. The formed steel surface provides a straightforward structure for routine cleaning and maintenance while supporting the mattress across the adjustable sections of the bed.

Central Locking System for Efficient Bed Management

Centralized Braking Instead of Individual Wheel Operation

The bed is equipped with a central locking caster system. After the bed has been moved to the required position, nursing staff can secure the mobile base through the centralized braking mechanism rather than operating each caster brake separately.

This feature becomes particularly practical in institutional environments where multiple beds are managed by nursing and housekeeping teams every day.

Mobility When the Bed Needs to Be Repositioned

The caster system allows the bed to be moved when required for room cleaning, maintenance, equipment access or changes to the resident-room arrangement. Centralized locking then provides a convenient way to secure the bed after repositioning.

Wooden Panels for a More Residential Nursing Home Environment

A Resident Room Is More Than a Clinical Space

For long-term residents, a nursing home room is also a living space. Equipment that looks excessively clinical can make the environment feel more institutional than necessary.

The wooden head and foot panels give this bed a warmer, furniture-inspired appearance than conventional ABS medical bed panels. This makes the model particularly suitable for nursing homes, assisted living facilities and senior care communities developing more residential-style interiors.

Professional Functions Behind a Warmer Appearance

The residential styling does not reduce the functional specification of the bed. Underneath the wooden exterior, the model retains electric three-function adjustment, a steel supporting structure, extended aluminum side rails and a central locking mobile base.

This combination allows facilities to provide residents with the functions of a professional Nursing Bed without making every room resemble a hospital ward.

Why the 450–720 mm Height Range Matters to Nursing Staff

When comparing nursing home beds, buyers often focus first on backrest and leg adjustment because these movements are easy to demonstrate. For institutional care, however, whole-bed height adjustment can be equally important.

A Working Height for Repeated Bedside Tasks

Nursing staff may need to approach the same resident several times during a shift. Raising the mattress platform can provide a more suitable working position for certain bedside tasks instead of requiring staff to work around a permanently low bed.

Return to a Lower Position After Care

Once the required care procedure has been completed, the bed can be lowered again according to the resident's needs. The 450–720 mm range therefore allows one bed to accommodate both resident use and caregiver working requirements.

What Should Nursing Home Buyers Look at Beyond the Motor Count?

Two beds can both be described as “three-function electric nursing beds” while having very different practical configurations. For procurement teams, comparing only the number of motors may therefore overlook important differences.

Side Rail Length and Structure

Buyers should consider how much of the mattress side is actually covered by the rail. This model uses approximately 148 cm six-position aluminum rails rather than shorter conventional folding guards.

Bed Platform Construction

The mattress support structure is another important detail. This model uses stamped steel sections instead of a welded wire-mesh platform.

Braking System

For beds that may be moved regularly within a facility, a central locking system provides a different operating experience from four individually operated caster brakes.

Height Adjustment Range

Whole-bed adjustment between 450 and 720 mm allows the mattress platform to be adapted to both resident and caregiver requirements.

Appearance of the Resident Room

Wooden head and foot panels provide a more residential alternative for facilities that do not want long-term resident rooms to have the appearance of acute hospital wards.

Suitable for Nursing Homes and Senior Care Projects

This electric nursing home bed is suitable for nursing homes, elderly care centers, assisted living facilities, rehabilitation institutions and other long-term care environments. It can be considered for residents who need regular electric positioning assistance while retaining the practical access and mobility features required by professional caregivers.

A Practical Specification for Bulk Procurement

For institutional buyers and distributors, the combination of a 0–75° backrest, 0–35° leg adjustment, 450–720 mm whole-bed height range, one-piece stamped steel platform, 148 cm six-position aluminum rails and central locking casters provides a clear specification for comparing this model with more basic nursing beds.

Rather than adding functions that may rarely be used, this configuration focuses on positioning, caregiver working height, bedside protection, mobility and long-term durability — areas that directly affect everyday operation in nursing facilities.

Professional Nursing Functions with Residential Styling

This three-function electric nursing home bed brings together two priorities that are increasingly important in long-term elderly care: equipment that supports efficient daily nursing and a design that feels appropriate for a resident's living environment.

The adjustable platform provides the essential positioning functions, while the extra-long folding rails, stamped steel bed surface and central locking system strengthen the practical specification for institutional use. Wooden panels complete the design with a warmer visual character.

For nursing home groups, elderly care projects and medical equipment distributors, additional configurations are available in our Nursing Bed range. For specifications, bulk purchasing, OEM/ODM requirements or quotation information, please contact us.
